AC10 Forced Air Circulation

AC10 FORCED AIR CIRCULATION

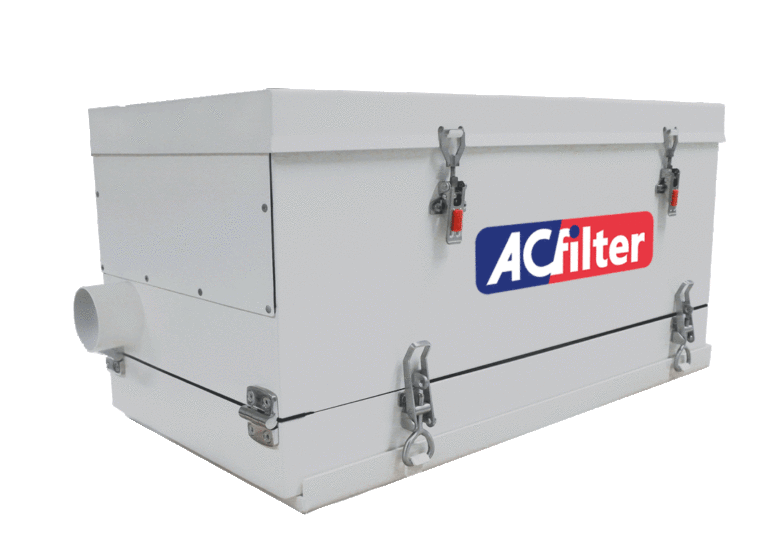

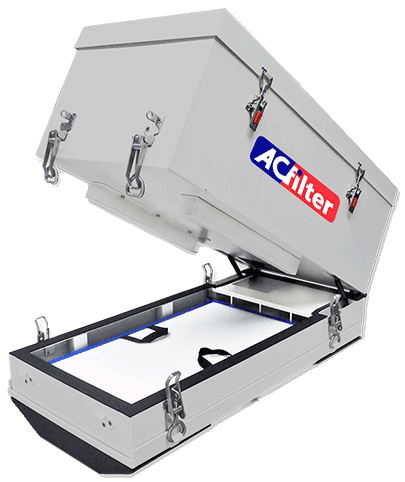

The AC10 Forced Air is the most innovative overpressure filter system on the market. The unit consists of two parts that can be tilted independently of each other. Both the bottom and top unit open by two gas cylinders. The upper part contains the Forced Air Circulation system. The polluted air is forced through the filters. Unique to the design is that the bottom unit is equipped with a water separation filter. The sub-unit possible filter package includes P1 + P2 + water-resistant pre-filter. The top unit can be supplied with P3 + 10 kg carbon filter, where necessary you can expand with an extra carbon filter.

Specificaties

Dimensions
Weight
Voltage
Power

Current
Standard Colour
Filter dimensions
Material Unit
Material Hood
Max. Overpressure
Filter possibilities

Mounting
Filter detection
Controller

850 x 450 x 415 mm
62 kg
12 VDC & 24 VDC
180W (12VDC),
120W (24VDC)
Imax 15,9 A
RAL7047
600 x 336 mm
Roestvast Staal RVS304
Roestvast Staal RVS304
400 Pa, 120m3/h
10 kg Carbon,
P1, P2, P3 (HEPA)
Horizontaal
2x
ACF

Dimensions:  850 x 450 x 415 mm
Weight:  32 kg
Voltage:  12 VDC & 24 VDC
Power:  180W (12VDC),
              120W (24VDC)
Current:  Imax 15,9 A
Standard Colour:  RAL7047
Filter dimensions: 600 x 336 mm
Material Unit:  Stainless Steel SS304
Material Hood: Stainless Steel SS304
Max. Overpressure:  400 Pa, 120m3/h
Filter possibilities:  10 kg Carbon,
                          P1, P2, P3 (HEPA)
Mounting:  Horizontal
Filter detection:  2x
Controller:  ACF
