AC2 SMART

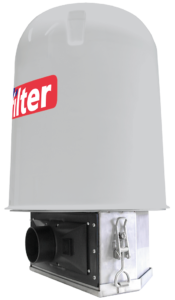

AC2 BASIC
The AC2 Smart is the smartest unit, ideally suited for a light polluted environment. This type is standard equipped with dust filters, but you can expand with a carbon filter against gases if desired. The small dimensions make the unit easy to assemble. Possible filter package: P1, P2, P3, expandable with a carbon filter.
Specificaties
Dimensions
Weight
Voltage
Power
Current
Colour
Filter dimensions
Material Unit
Material Hood
Max. Overpressure
Filter possibilities
Mounting
Air outlet
Filter detection
Controller
465 x 385 x 490 mm
25 kg
12 VDC & 24 VDC
180W (12VDC), 120W (24VDC)
Max 15,9 A
RAL7047
390 x 270 mm
Stainless steel SS304
Stainless steel SS304
400 Pa, 120m3/h
10 kg Carbon,
P1, P2, P3 (HEPA)
Horizontal
3 sides
2x
ACF-Basic
Dimensions: 0 450 x 740 mm
Weight: 32 kg
Voltage: 12 VDC & 24 VDC
Power: 180W (12VDC),
120W (24VDC)
Current: Imax 15,9 A
Standard Colour: RAL7047
Filter dimensions: 280 x 280 mm
Material Unit: Stainless Steel SS304
Material Hood: ABS
Max. Overpressure: 400 Pa, 120m3/h
Filter possibilities: 10 kg Carbon,
P1, P2, P3 (HEPA)
Mounting: Horizontal
Filter detection: 2x
Controller: ACF
