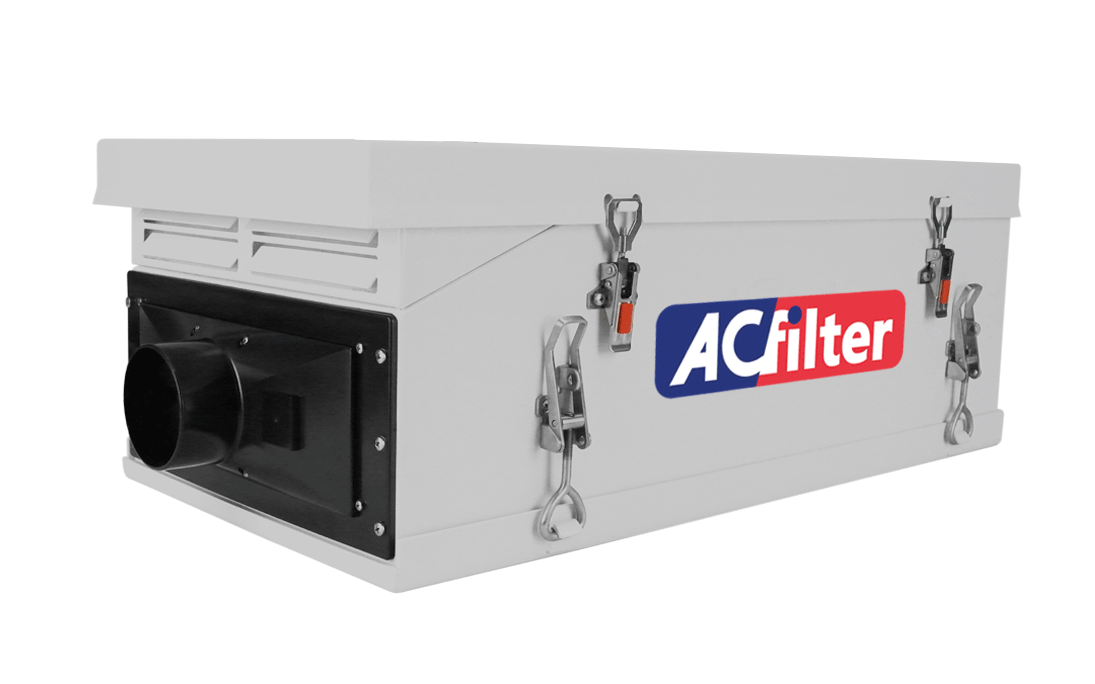

AC6 Standard
AC6 STANDART
The most commonly used unit is the AC6 Standard. Perfect for larger excavators and bulldozers. The design makes it possible to mount the unit, for example, on the engine compartment behind the cab or on the mudguard of the machine. The AC6 Standard has a larger filter capacity, so it can work smoothly in the most polluted environments. Possible filter package: P1 + P3 + 10 kg carbon filter, expandable with an extra carbon filter if desired.
Specificaties
Dimensions
Weight
Voltage
Power
Current
Standard Colour
Filter dimensions
Material Unit
Material Hood
Max. Overpressure
Filter possibilities
Mounting
Filter detection
Controller
850 x 450 x 305 mm
41 kg
12 VDC & 24 VDC
180W (12VDC),
120W (24VDC)
Imax 15,9 A
RAL7047
600 x 336 mm
Stainless Steel SS304
Stainless Steel SS304
400 Pa, 120m3/h
10 kg Carbon,
P1, P2, P3 (HEPA)
Horizontal
2x
ACF
Dimensions: 850 x 450 x 305 mm
Weight: 32 kg
Voltage: 12 VDC & 24 VDC
Power: 180W (12VDC),
120W (24VDC)
Current: Imax 15,9 A
Standard Colour: RAL7047
Filter dimensions: 600 x 336 mm
Material Unit: Stainless Steel SS304
Material Hood: Stainless Steel SS304
Max. Overpressure: 400 Pa, 120m3/h
Filter possibilities: 10 kg Carbon,
P1, P2, P3 (HEPA)
Mounting: Horizontal
Filter detection: 2x
Controller: ACF
